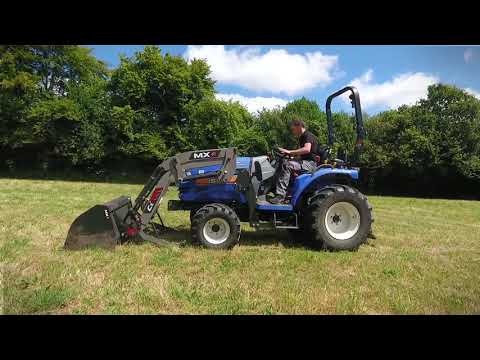

MX COMPACT C2+ loaders is maintaining the compactness of the tractor/loader units, whilst acheiving the maximum lift height and reach to easier dump materials into high trailers and stack pallets.
With more than 45° crowding at ground level, the bucket can be completely filled, ensuring maximum efficiency.
An exclusive mechanical parallelogram concept that offers maximum leveling performance, but perfectly integrates with the profile and contours of the loader to give optimum working visibility.
With fewer pivot points on the CLEAR LINK System than on conventional parallelogram designs, maintenance is reduced and product life extended.
MX COMPACT loaders can be hitched and unhitched from the tractor easily and quickly using a simple pin mechanism. The loader sub-frame is tailor-made to match each specific tractor model which ensures a compact design with unrestricted access to maintenance points
Implements are easily hitched whilst remaining in the tractor seat. They are automatically locked once the implement is on the carrier, via a special locking mechanism. Unhitching is made simple by a well positioned release lever on the left hand side of the loader.
Funktioner
- Folding parking stands, easy to use and discreetly positioned.
- Cable controlled loader valve with monolever or tractors original valve can be used.
- Various accessories are available and can be selected. Implement carrier is MX Compact.
Clear-link system parallelogram
The mechanical CLEAR-LINK System parallelogram fully covers the height of the loader to the dumping ram for maximum integration and optimum visibility. There are fewer joints in the CLEAR-LINK System than in a classic parallelogram, which reduces its maintenance costs and prolongs the product's useful lifetime.
Integrated hydraulics
The hydraulic piping is fully integrated into the boom for complete protection against shocks.
Accessible parking stands
Positioned discreetly under the loader arm, they are very simple to deploy.
Automatic locking implement carrier*
Without descending from the tractor, the implement locks as soon as it is installed on the carrier thanks to a presence detector. Unlocking is simple, using an easy-access lever on the left side. *depending on loader model
Instant hitching/unhitching of loader/tractor
Loaders can be hitched and unhitched from the tractor easily and quickly using a simple pin mechanism. The loader sub-frame is tailor-made to match each specific tractor model, ensuring a compact design with unrestricted access to maintenance points.
Sealed-coupling connection of tractor/loader electrohydraulics with the MACH System® (option)
Sealed-coupling connection of tractor/loader electrohydraulics with the MACH System®
-
Tractor power 18-35 hkr
-
Weight without equipment 240 kg
-
Maximum height at implement pivot 2250 mm
-
Lift capacity at implement pivot whole lifting range 570 kg
-
Payload cap. on pallets 800mm out, max height 480 kg
-
Parallelogram
-
Parallelogram, system Mekanisk
-
Dumping angle at full height 57 degree
-
Crowd angle at ground level 42 degree
-
Digging depth 150 mm
-
Front unloading area 900-1050 mm
-
Breakout strength of implements axis of rotation 570 kg
General
Dimensions
Frontloader
